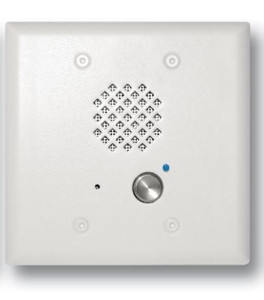

Viking Electronics E-60-WH-EWP Satin White Double Gang Entry Phones with Enhanced Weather Protection

The E-60 Series entry phones are compact, weather and vandal resistant, telephone line powered speaker phones designed to provide two-way handsfree communication. The E-60's compact size allows it to be mounted in a standard double gang electrical box. The E-60 is available in five different attractive finishes to match your door hardware, light fixtures, etc. The E-60's blue LED continually provides light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming ring.Applications:

• Door or gate communication, business delivery entrances
• Use with a Viking C-200 to control one E-60 on a single phone line
• Use with a Viking C-2000A to control 1 to 4 E-60's and door/gate control on a single phone line
• Provide unique front and back door chimes and paging when used with a Viking SLP-1 and C-2000A
• Residential, commercial and industrial door security
• Use with a Viking K-1900-5 for automatic speed dialing on tele- phone lines or analog PABX/KSU station ports
• Use on any analog PABX station port with programmable ringdown capability

• Compact size: Front panel is the size of a typical double gang mid- size wall plate
• Oil Rubbed Bronze finish (satin dark brown powder paint with fine copper metallic): replacement faceplates with matching screws available
• Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, self draining mic mount, UV stable weather
• Telephone line powered, no additional AC power needed
• Microphone and speaker volume controls on p.c. board
• Programmable Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
• Selectable auto answer feature for monitoring
• Programmable VOX (mic/speaker) switching speed

• Power: Telephone line powered. Minimum 18V DC talk battery voltage with a minimum loop current of 20mA.
• Dimensions: Faceplate: 123.8mm x 125.4mm x 4.3mm (4.875" x 4.938" x 0.17"), Phone: 72mm x 46mm x 42mm (2.84" x 1.8" x 1.65") Weight: 0.45 kg (1.0 lbs)
• Environmental: Operating Temperature: -34° C to 65° C (-30° F to 150° F), 5% to 95% non-condensing humidity
• Speaker Volume: Approximately 62db maximum @ 1m
• Ring Voltage: 25V AC RMS min (for auto answer), Ren 0.8A
• CPC Disconnect Time: 300ms minimum
• Connections: (2) gel-filled butt connectors
